Waveguide to Coax Adapters Double-Ridged
Microtech's Waveguide to Coax Adapters Double-Ridged are engineered, designed, and manufactured "in house".
Microtech, Inc. Waveguide to Coax Adapters are made from a precision extruded tubing with the end caps silver or dip brazed to give you a precise and durable unit for both lab and systems use over the full specified operating band, with a minimum VSWR and Insertion Loss. These units can be built to be pressure tight on request.
Typical Electrical Specifications
| Size | Frequency | VSWR Max. | Insertion Loss (dB) |
|---|---|---|---|
| WRD 180 | 18.00-40.00 GHz | 1.60 | .75 |
| WRD 750 | 7.50-18.00 GHz | 1.25 | .50 |
| WRD 650 | 6.50-18.00 GHz | 1.25 | .50 |
| WRD 580 | 5.80-16.00 GHz | 1.35 | .35 |
| WRD 475 | 4.75-11.00 GHz | 1.25 | .35 |
| WRD 350 | 3.50-8.20 GHz | 1.25 | .30 |
| WRD 200 | 2.00-4.80 GHz | 1.25 | .30 |
Typical Mechanical Specifications

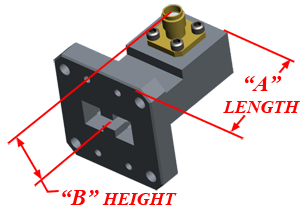

| Size | Frequency | Connector * | Flange Equiv. | Material | "A" Dimension (Max. inches) | "B" Dimension (Max. inches) |
|---|---|---|---|---|---|---|
| WRD 180 | 18.00-40.00 GHz | 2.9mm/2.4mm | Cover | Aluminum | 1.50 | 0.7 |
| WRD 750 | 7.50-18.00 GHz | SMA | Cover | Aluminum | 2.0 | 1.0 |
| WRD 650 | 6.50-18.00 GHz | SMA | Cover | Aluminum | 2.0 | 1.0 |
| WRD 580 | 5.80-16.00 GHz | SMA/N/TNC | Cover | Aluminum | 2.0 | 1.5 |
| WRD 475 | 4.75-11.00 GHz | SMA/N/TNC | Cover | Aluminum | 3.0 | 1.5 |
| WRD 350 | 3.50-8.20 GHz | SMA/N/TNC | Cover | Aluminum | 5.0 | 2.0 |
| WRD 200 | 2.00-4.80 GHz | SMA/N/TNC | Cover | Aluminum | 8.0 | 3.0 |
* Standard Waveguide to Coax Adapters are supplied with a female connector.

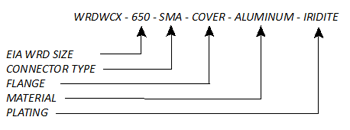

ORDERING INFORMATION |
 |
|
|
Notes
-> Insertion Loss values are dependent on connector choice and “A” dimension.
-> "B" values are dependent on connector choice.
-> Other configurations and specifications available upon request. Adapters that conform to MIL-DTL-22641 are also available. Contact the factory with your requirements.
