Double Ridged Waveguide to Coax End Launch Adapter
Microtech's Double Ridged Waveguide to Coax End Launch Adapter are engineered, designed, and manufactured "in house".
Typical Electrical / Mechanical Specifications
| Size | Frequency | Connector Type | Flange | Material | "A" Dim. Max. Inches | Plating |
|---|---|---|---|---|---|---|
| WRD 180 | 18.00-40.00 GHz | CUSTOMER TO SPECIFY | CUSTOMER TO SPECIFY | ALUMINUM | 2.00 | IRIDITE |
| WRD 750 | 7.50-18.00 GHz | CUSTOMER TO SPECIFY | CUSTOMER TO SPECIFY | ALUMINUM | 3.00 | IRIDITE |
| WRD 650 | 6.50-18.00 GHz | CUSTOMER TO SPECIFY | CUSTOMER TO SPECIFY | ALUMINUM | 3.00 | IRIDITE |
| WRD 580 | 5.80-16.00 GHz | CUSTOMER TO SPECIFY | CUSTOMER TO SPECIFY | ALUMINUM | 3.00 | IRIDITE |
| WRD 475 | 4.75-11.00 GHz | CUSTOMER TO SPECIFY | CUSTOMER TO SPECIFY | ALUMINUM | 4.00 | IRIDITE |
| WRD 350 | 3.50-8.20 GHz | CUSTOMER TO SPECIFY | CUSTOMER TO SPECIFY | ALUMINUM | 6.00 | IRIDITE |
| WRD 200 | 2.00-4.80 GHz | CUSTOMER TO SPECIFY | CUSTOMER TO SPECIFY | ALUMINUM | 8.00 | IRIDITE |

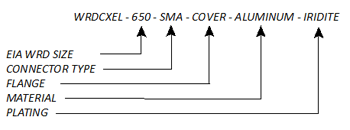

ORDERING INFORMATION |
 |
|
|
FLANGE TYPE : COVER - GASKET
CONNECTOR: N - SMA - TNC - 2.4 mm - 2.9mm - 3.5mm
MATERIAL : ALUMINUM
PLATING : IRIDITE
Notes
Microtech Waveguide to Coax Adapters are made from a precision extruded tubing with the end caps silver or dip brazed to give you a precise and durable unit for both lab and systems use over the full specified operating band, with a minimum VSWR and Insertion Loss. These unites can be built to be pressure tight on request. Contact the factory with your specific requirements.
