Double Ridged Waveguide Power Sampler
Microtech's Double Ridged Waveguide Power Sampler are engineered, designed, and manufactured "in house".
Typical Electrical / Mechanical Specifications
| Size | Frequency | Connector Type | Flange | Material | "A" Dim. Max. Inches | Plating |
|---|---|---|---|---|---|---|
| WRD 180 | 18.00-40.00 GHz | 2.7 | COVER | Aluminum | 2.00 | IRIDITE |
| WRD 750 | 7.50-18.00 GHz | SMA | COVER | Aluminum | 3.00 | IRIDITE |
| WRD 650 | 6.50-18.00 GHz | SMA | COVER | Aluminum | 3.00 | IRIDITE |
| WRD 580 | 5.80-16.00 GHz | SMA | COVER | Aluminum | 3.00 | IRIDITE |
| WRD 475 | 4.75-11.00 GHz | SMA | COVER | Aluminum | 4.00 | IRIDITE |
| WRD 350 | 3.50-8.20 GHz | N | COVER | Aluminum | 6.00 | IRIDITE |
| WRD 200 | 2.00-4.80 GHz | N | COVER | Aluminum | 8.00 | IRIDITE |

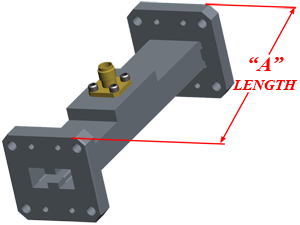

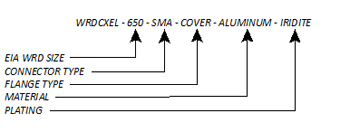

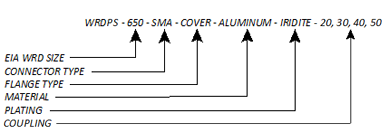

ORDERING INFORMATION |
 |
|
|
FLANGE TYPE : COVER - GASKET
CONNECTOR: N - SMA - 2.7 mm - 2.9mm
MATERIAL : ALUMINUM
PLATING : IRIDITE
Notes
Microtech,Inc. DOUBLE RIDGED WAVEGUIDE SAMPLERS are designed and built using the latest software and precision CNC machining. Typically. Power Sampling values range from 30 to 60 Db.
Other values are available on request. Contact factory direct with your specific requirements
