Couplers, Double-Ridged Crossguide
Microtech's Couplers, Double-Ridged Crossguide are engineered, designed, and manufactured "in house".
Typical Electrical Specifications
| Size | Frequency | VSWR Primary Arm Max. | Coupling Variation + or - (dB) |
|---|---|---|---|
| WRD 180 | 18.00-40.00 GHz | 1.20 | 5.0 |
| WRD 750 | 7.50-18.00 GHz | 1.10 | 4.0 |
| WRD 650 | 6.50-18.00 GHz | 1.10 | 5.0 |
| WRD 580 | 5.80-16.00 GHz | 1.10 | 4.0 |
| WRD 475 | 4.75-11.00 GHz | 1.10 | 3.5 |
| WRD 350 | 3.50-8.20 GHz | 1.10 | 3.5 |
| WRD 200 | 2.00-4.80 GHz | 1.10 | 3.5 |
Typical Mechanical Specifications
| Size | Frequency | Flange Equiv. | "A" Dimension (Max. inches) | "B" Dimension (Max. inches) | "C" Dimension Jack |
|---|---|---|---|---|---|
| WRD 180 | 18.00-40.00 GHz | Cover | 4.0 | 6.00 | 2.9 |
| WRD 750 | 7.50-18.00 GHz | Cover | 4.0 | 8.00 | SMA |
| WRD 650 | 6.50-18.00 GHz | Cover | 4.0 | 8.00 | SMA |
| WRD 580 | 5.80-16.00 GHz | Cover | 4.0 | 8.00 | SMA |
| WRD 475 | 4.75-11.00 GHz | Cover | 5.00 | 9.00 | SMA |
| WRD 350 | 3.50-8.20 GHz | Cover | 6.00 | 12.00 | N |
| WRD 200 | 2.00-4.80 GHz | Cover | 10.00 | 16.00 | N |
|
 |
|
|
|
|
 |
 |
|
|
|
||||
| STYLE "T" | STYLE "X" | STYLE "C" |
Notes

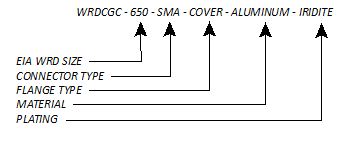

-> 1. Standard couplings available are 30, 40, 50, and 60. Others values available on special order. Specify by adding coupling and style desired as a suffix to the part number. Example: 240109 -30. 2. Coaxial secondary outputs are also available. Contact the factory or our local Manufacturer's Representative for details. 3. Nominal directivity is 12 dB. 4. Material is 6061/6063 Aluminum.
